Servo drive EA180

(314)

Thêm vào giỏ hàng Mua ngay

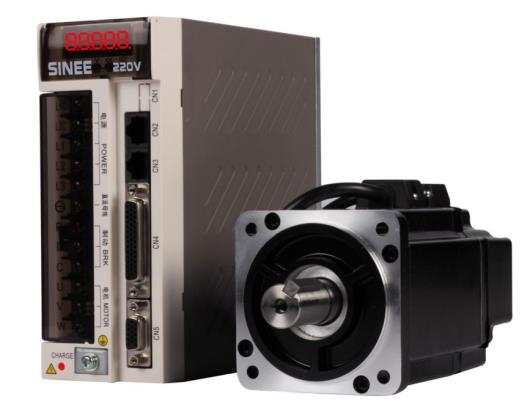

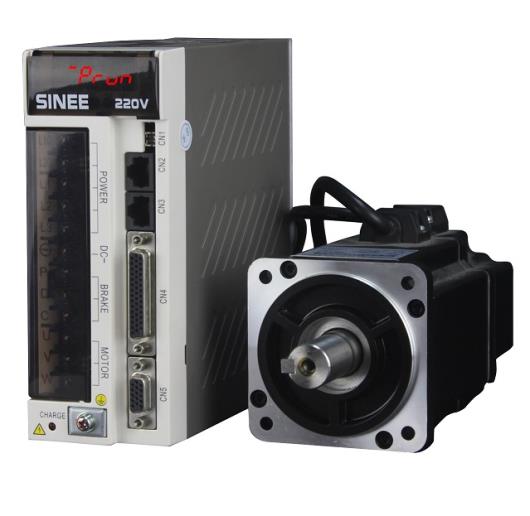

Servo Drive EA180 là phiên bản cao hơn của EA100.

Kích thước công suất dao động từ 100w đến 7500kw, hỗ trợ 2500ppr, tăng 17 bit / tuyệt đối và bộ mã hóa tuyệt đối 23 bit.

Servo drive and motor matching table

Servo Drive			Servo Motor
Drive Model	Voltage	Size	Motor Model	Motor Power	Rated Speed	Rated Torque
EA180-1R6-2□	Single phase or three phase AC220V	SIZEA	SES04-0R1-30-2□AY□	100W	3000rpm	0.32Nm
EA180-1R6-2□			SER06-0R2-30-2□AY□	200W	3000rpm	0.64Nm
EA180-2R8-2□			SER06-0R4-30-2□AY□	400W	3000rpm	1.28Nm
EA180-5R5-2□			SER08-0R7-30-2□AY□	750W	3000rpm	2.38Nm
			SER08-0R7-20-2□AY□	750W	2000rpm	3.58Nm
			SER08-1R0-30-2□AY□	1000W	3000rpm	3.18Nm
EA180-7R6-2□		SIZEB	SER13-1R0-10-2□BY□	1000W	1000rpm	9.55Nm
			SER13-1R0-20-2□BY□	1000W	2000rpm	4.77Nm
			SER13-1R0-30-2□BY□	1000W	3000rpm	3.18Nm
EA180-010-2□	Three phaseAC220V		SER13-1R5-10-2□BY□	1500W	1000rpm	14.32Nm
			SER13-1R5-20-2□BY□	1500W	2000rpm	7.16Nm
			SER13-1R5-30-2□BY□	1500W	3000rpm	4.77Nm
EA180-8R4-3□	Three phaseAC380V		SER13-1R5-10-3□BY□	1500W	1000rpm	14.32Nm
EA180-5R4-3□			SER13-1R5-20-3□BY□	1500W	2000rpm	7.16Nm
EA180-5R4-3□			SER13-1R5-30-3□BY□	1500W	3000rpm	4.77Nm
EA180-8R4-3□			SER13-2R0-20-3□BY□	2000W	2000rpm	9.55Nm
EA180-8R4-3□			SER13-2R0-30-3□BY□	2000W	3000rpm	6.37Nm
EA180-012-3□			SER13-3R0-20-3□BY□	3000W	2000rpm	14.32Nm
			SER13-3R0-30-3□BY□	3000W	3000rpm	9.55Nm
			SER18-3R0-15-3BBZ□	3000W	1500rpm	19.1Nm
			SER18-3R0-15-3BCZ□	3000W	1500rpm	19.1Nm
EA180-018-3B		SIZE C	SER18-4R5-15-3BBZ□	4500W	1500rpm	28.65Nm
EA180-021-3B			SER18-5R6-15-3BBZ□	5600W	1500rpm	35.65Nm
EA180-026-3B			SER18-7R5-15-3BBZ□	7500W	1500rpm	47.75Nm

Encoder cables

Power/brake cables:
