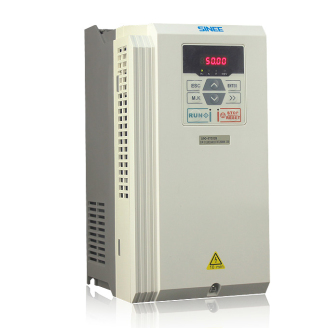

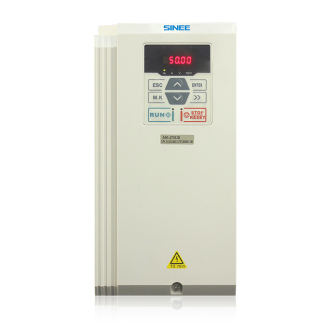

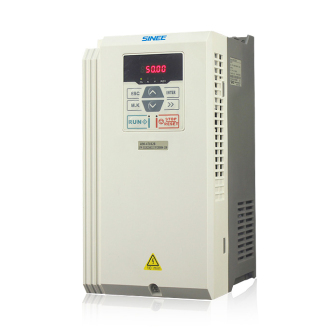

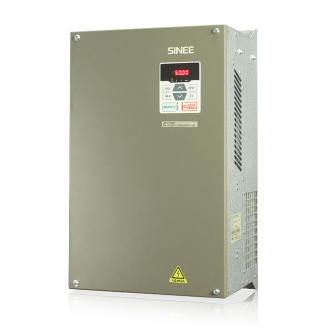

A90 Compact inverter

(245)

Add to cart Buy now

Overview

V/F & SVC Control
1-phase 220V(±20%), 0.4~2.2kW
3-phase 380V/415V(±20%),0.4~160kW
• A90 compact inverter is high performance and high competitive model.
• New technology platform: the 4th generation IGBT module.
• Applicable to IM and PM motor.

Main features:
1. Normal operation under ambient 50℃, no need for derating;

2. Smaller volume size less than other similar products by averagely 20%-50% ;

3. Wide speed regulation: VF/1:50,SVC/1:200,and high precision control: ±0.2% of rated speed;

4. Superior loading at low frequency: VF/1HZ/150%,SVC/0.25HZ/150%;

5. Super cost-effective;

6. Superior protection: overcurrent, overvoltage, overload, over-temperature.

7. As a buffer against power interruption, the inverter can stop motor slowly to protect it.

Specifications	W	W1/W2	H	H1	H2	D	D1
A90-2T2R8B	75	65	142	133	142	141	67
A90-2T4R8B
A90-2T008B	92	76/81	171	162	162	132	82
A90-2T010B
A90-4T1R5B	75	65	162	153	142	103	29
A90-4T2R5B	75	65	142	133	142	141	67
A90-4T4R2B
A90-4T5R6B	92	76/81	171	162	162	132	82
A90-4T9R4B
A90-4T013B	109	94	218	208	207	153	102
A90-4T017B
A90-4T025B	130	107/119	261	250	250	163	128
A90-4T032B
A90-4T038B	190	167	293	282	280	180	143
A90-4T045B
A90-4T060	245	210	425	410	390	188	137
A90-4T075
A90-4T090	300	266	491	473	450	206	168
A90-4T110
A90-4T150	335	286	491	471	450	206	170
A90-4T176	335	286	623	601	570	293	248
A90-4T210
A90-4T253	400	330	743	723	690	300	246
A90-4T304
