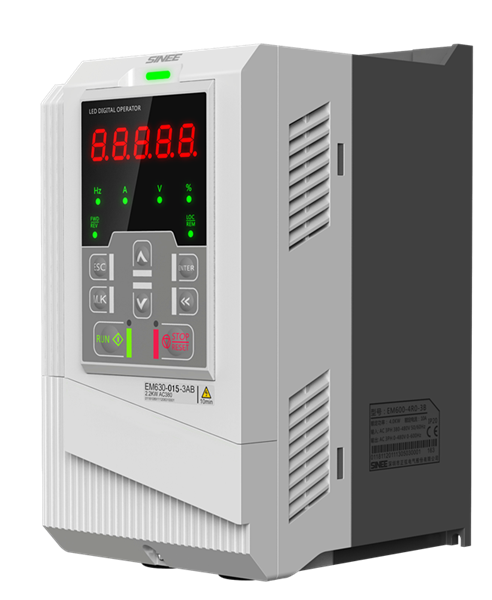

Biến tần điều khiển nâng hạ EM630

Biến tần điều khiển nâng hạ EM630

(139)

EM630 là biến tần chuyên dụng điều khiển vector vòng kín dùng cho thang máy và các loại cần trục nâng hạ. Khi ứng dụng vào cẩu tháp, biến tần có thể điều khiển 3 thành phần của hệ thống bao gồm: cơ cấu nâng hạ, vào ra và xoay.

3 pha 380V / 415V (± 20%), 4.0 ~ 280kW

Tính năng
①.   Xuất 150% mô-men / 0 Hz, cẩu trục sẽ ổn định khi khởi động nâng hoặc hạ.
②.   Phản hồi bộ mã hóa vòng quay được bảo vệ khi hỏng phanh hoặc quá tốc độ, biến tần sẽ giữ tải trên không hoặc trượt xuống từ từ.
③.   Bộ điều khiển logic đặc biệt giúp kéo dài tuổi thọ của phanh, tăng cường khả năng vận hành an toàn.
④.   Khả năng đáp ứng mạnh với sự thay đổi của lưới điện, giữ mô-men xoắn cao khi có sụt áp.
⑤.   Hoạt động hiệu quả và mềm dẻo: tốc độ cao với tải nhẹ và ngược lại.

Sơ đồ nối dây
EM630

3.Đặc điểm kỹ thuật



Items

Specifications

 Mains supply

 Rated Input

 Voltage

 3-phase 380V-20%~415V+20%, 50/60Hz±5%

 voltage imbalance rate<3%

 Output

 Output

 Voltage

 3-phase, from 0 to mains supply

 Rated

 Current

 100% rated current non-stop output

 Max. Overload

 Current

150% rated current for 1 minute, 180% rated current for 10 seconds, 200%  rated current for 2 seconds

Basic Control

 Control Mode

 V/F, FVC (feedback vector control)

 Input Mode

 Frequency (Speed) input, torque input

 Running Mode

 Keypad, control terminals (2-wire sequence, 3-wire sequence), RS485  (communication)

 Output frequency

 0. 00~600. 00Hz

 Input

 Frequency

 Resolution

 Digital input: 0.01Hz

 Analog input: 0.1% of maximum frequency

 Speed Regulation

 Ratio

 1:50 (V/F), 1:1000 (FVC)

 Speed Control

 Accuracy

 0.2% rated synchronous speed

 Acceleration/

 Deceleration Time

 0.01~600.00 seconds/0.1~6000.0 seconds/1~60000 seconds

 V/F Features

 Rated output voltage: 20%~100% adjustable, frequency base:  20.00~600.00Hz adjustable

 Torque Boost

 Fixed torque boost curve, customized V/F curve scaling

 Start Torque

150%/1Hz (V/F), 150%/0Hz (FVC)

 Torque Control  Accuracy

 ±5% rated torque (FVC)

 AVR

 AVR is active while output voltage remains unchanged if input voltage is  varying.

 Automatic Current  Limit

 Automatically limit output current, avoid tripping overcurrent frequently

 DC Brake

 Brake frequency: 0.01~Fmax, brake time: 0~30s

 Brake current: 0%~100% rated current

 Signal Input  Source

 Communication, preset speed

 Function of

 Input and Output

 Reference Power

 10V/20mA

 Terminal Control  Power

 24V/200mA

 Digital Input  Terminals

 7 multi-function digital input terminals

 Analog Input  Terminals

 3 analog inputs: 1 voltage input: 0~10V

 2 optional inputs: 0~10V voltage inputs or 0~20mA current inputs optional

 1 voltage input (AI4)-10V~10V

 Digital Output  Terminals

 2 OC multi-function outputs: 2 relay multi-function outputs

 Maximum output current of OC: 50mA

 Relay contact capacity: 250VAC/3A or 30VDC/1A, EA-EC and RA-RC  N/O, EB-EC and RB/RC N/C

 Analog Output  Terminals

 2 multi-function analog outputs terminals: M1/M2, output:  0~10V or 0~20mA

 Keypad

 Display

 LED

 Human interactions with displays and control actuators

 Parameter Copy

 Upload and download parameter information of the inverter, copy  parameters rapidly

Protection

 Protection

 Short circuit, overcurrent, overvoltage,, overload, phase loss, undervoltage,  overheating, over speed, external faults, etc.

 Application  Conditions

 Installation Site

 Indoor, with altitude less than 1,000 meters, free from dust and corrosive  gas, and direct sunlight

 Ambient  Temperature

 -10℃~+50℃. Derated from ambient +40℃~+50℃,

 20%~90%RH (no condensation)

 Vibration

 <0.5g

 Storage  Temperature

 -20℃~+65℃

 Installation Method

 Installed inside the control cabinet

 Protection Grade

 IP20

 Cooling Method

 Forced air cooling

 Safety Standard

 IEC61800-5-1:2007

 EMC Standard

 IEC61800-3:2004





4.Model

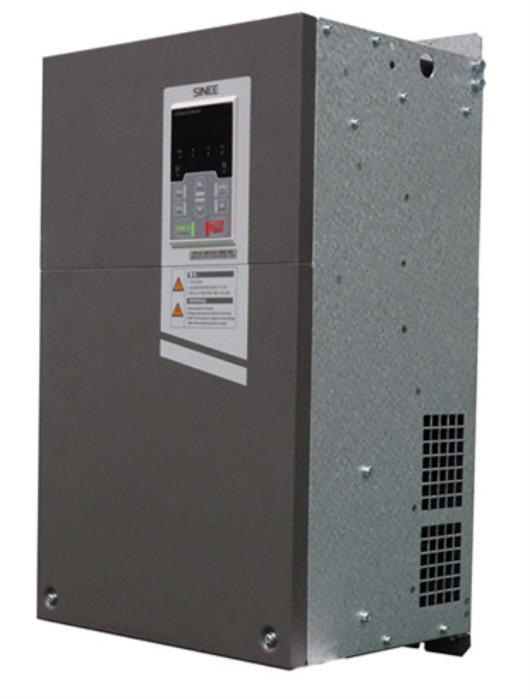

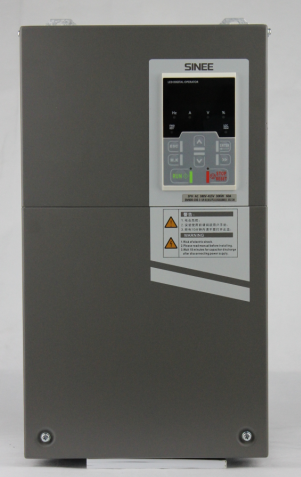

 EM630(30kW)





Kích thước tổng thể và cài đặt


Biến tần EM630 có thể được phân loại thành 30 thông số kỹ thuật cho 3 kích thước tổng thể và 11 kích thước lắp đặt.

Bàn phím có thể được cài đặt riêng trên bảng sắt với kích thước lỗ 114,5 ± 0,1 (L) * 71 ± 0,1 (W) mm và độ dày của bảng kim loại là 1,2-2 mm.


Kích thước cài đặt tổng thể của EM630



Thông số kỹ thuật

W

W1 / W2

H

H1

H2

D

D1

Đ2

d

Khung

EM630-4R0-3B

130

115/120

228

220

219

153

108

75

5

(b)

EM630-5R5-3B

140

130

270

261

258

172

128

94

5

(b)

EM630-7R5-3B

EM630-011-3B

180

150

368

353

343

210

165

136

7

(b)

EM630-015-3B

EM630-018-3B

EM630-022-3 / 3B

250

200

484

470

440

222

150

-

6,5

(c)

EM630-030-3 / 3B

EM630-037-3 / 3B

EM630-045-3 / 3B

315

220

560

546

513

250

180

-

7

(c)

EM630-055-3 / 3B

350

250

662

638

603

262

188

-

12

(c)

EM630-075-3 / 3B

EM630-090-3

386

300

753

724

700

292

231

300

13

(d)

EM630-110-3

420

300

855

825

793

307

246

315

13

(d)

EM630-132-3

EM630-160-3

497

397

1107

1076

1036

340

285

348

13

(d)

EM630-185-3

EM630-200-3

EM630-220-3

656

450

1348

1314

1261

397

232

395

13

(d)

EM630-250-3

EM630-280-3

EM630-315-3

801

680

1417

1383

1330

397

190

395

13

(d)

EM630-355-3

EM630-400-3




Chi tiết đóng gói của EM630



Linh kiện

Tên  Thông số kỹ thuật  Mô tả   Hình ảnh
Thẻ mở rộng IO đa chức năng EC-IO-A1 Được sử dụng để mở rộng các thiết bị đầu cuối điều khiển biến tần
Thẻ mở rộng bộ mã hóa chung (thẻ PG) EC-PG-O1 Thẻ PG đầu vào OC
EC-PG-D1 Thẻ PG đầu vào khác biệt
EC-PG-U1 Thẻ PG đầu vào vi sai UVW
EC-PG-R1 Thẻ PG biến áp quay
Bộ điều khiển GPS EC-GPS-M1 Hỗ trợ hệ thống điều khiển từ xa GPS
Thiết bị bảo hộ khẩn cấp SPD-550-3P Được sử dụng để ngăn chặn sét đánh
