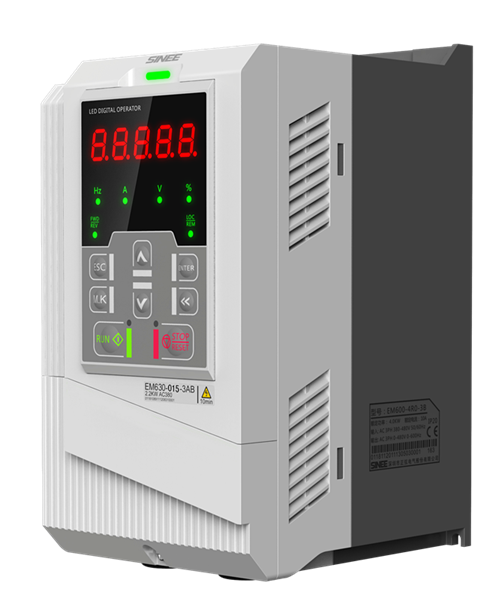

EM630 Hoist drive

EM630 Hoist drive

EM630
Hoist drive

3-phase 380V/415V(±20%), 4.0~280kW

EM630 is a close-loop vector control inverter specially designed for lift control of various kinds of cranes such as travelling crane and builder lift, etc. When applied to tower crane, it can control the 3 parts of the system respectively like hoist, trolley and slewing.

1.Salient features


①.   150% rated torque / 0Hz (FVC),the crane operates stably when starting, hoist and fall.

②.   Encoder feedback provides further protection: the load is hold in the air or going down slowly in case of brake failure or over speed, without slip.

③.   Unique brake control logic prolongs the service life of the brake system, and enhances the operation safety.

④.   Strong adaptability of power grid, high torque output remains when under voltage.

⑤.   Flexible and efficient operation: Light load at high speed and heavy load at low speed.



2.Wiring diagram






3.Specifications



Items

Specifications

 Mains supply

 Rated Input

 Voltage

 3-phase 380V-20%~415V+20%, 50/60Hz±5%

 voltage imbalance rate<3%

 Output

 Output

 Voltage

 3-phase, from 0 to mains supply

 Rated

 Current

 100% rated current non-stop output

 Max. Overload

 Current

150% rated current for 1 minute, 180% rated current for 10 seconds, 200%  rated current for 2 seconds

Basic Control

 Control Mode

 V/F, FVC (feedback vector control)

 Input Mode

 Frequency (Speed) input, torque input

 Running Mode

 Keypad, control terminals (2-wire sequence, 3-wire sequence), RS485  (communication)

 Output frequency

 0. 00~600. 00Hz

 Input

 Frequency

 Resolution

 Digital input: 0.01Hz

 Analog input: 0.1% of maximum frequency

 Speed Regulation

 Ratio

 1:50 (V/F), 1:1000 (FVC)

 Speed Control

 Accuracy

 0.2% rated synchronous speed

 Acceleration/

 Deceleration Time

 0.01~600.00 seconds/0.1~6000.0 seconds/1~60000 seconds

 V/F Features

 Rated output voltage: 20%~100% adjustable, frequency base:  20.00~600.00Hz adjustable

 Torque Boost

 Fixed torque boost curve, customized V/F curve scaling

 Start Torque

150%/1Hz (V/F), 150%/0Hz (FVC)

 Torque Control  Accuracy

 ±5% rated torque (FVC)

 AVR

 AVR is active while output voltage remains unchanged if input voltage is  varying.

 Automatic Current  Limit

 Automatically limit output current, avoid tripping overcurrent frequently

 DC Brake

 Brake frequency: 0.01~Fmax, brake time: 0~30s

 Brake current: 0%~100% rated current

 Signal Input  Source

 Communication, preset speed

 Function of

 Input and Output

 Reference Power

 10V/20mA

 Terminal Control  Power

 24V/200mA

 Digital Input  Terminals

 7 multi-function digital input terminals

 Analog Input  Terminals

 3 analog inputs: 1 voltage input: 0~10V

 2 optional inputs: 0~10V voltage inputs or 0~20mA current inputs optional

 1 voltage input (AI4)-10V~10V

 Digital Output  Terminals

 2 OC multi-function outputs: 2 relay multi-function outputs

 Maximum output current of OC: 50mA

 Relay contact capacity: 250VAC/3A or 30VDC/1A, EA-EC and RA-RC  N/O, EB-EC and RB/RC N/C

 Analog Output  Terminals

 2 multi-function analog outputs terminals: M1/M2, output:  0~10V or 0~20mA

 Keypad

 Display

 LED

 Human interactions with displays and control actuators

 Parameter Copy

 Upload and download parameter information of the inverter, copy  parameters rapidly

Protection

 Protection

 Short circuit, overcurrent, overvoltage,, overload, phase loss, undervoltage,  overheating, over speed, external faults, etc.

 Application  Conditions

 Installation Site

 Indoor, with altitude less than 1,000 meters, free from dust and corrosive  gas, and direct sunlight

 Ambient  Temperature

 -10℃~+50℃. Derated from ambient +40℃~+50℃,

 20%~90%RH (no condensation)

 Vibration

 <0.5g

 Storage  Temperature

 -20℃~+65℃

 Installation Method

 Installed inside the control cabinet

 Protection Grade

 IP20

 Cooling Method

 Forced air cooling

 Safety Standard

 IEC61800-5-1:2007

 EMC Standard

 IEC61800-3:2004





4.Model Numbering Scheme


5.Model Number List

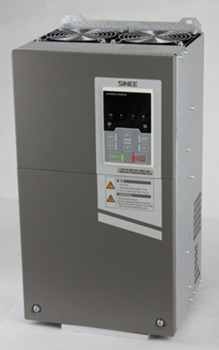

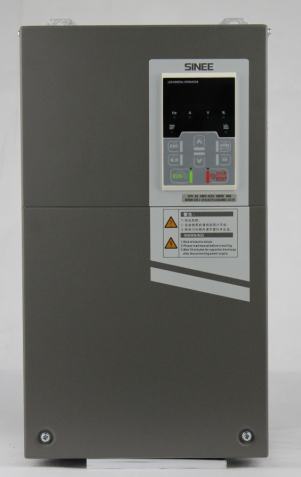

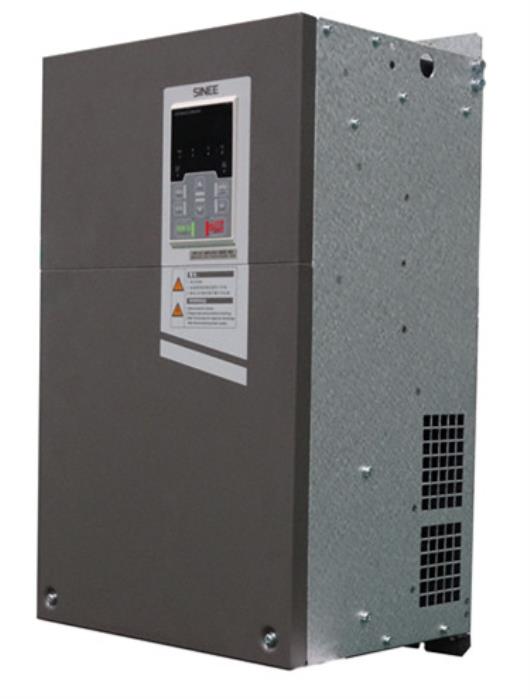

EM630 Outlook

(30kW)

Overall and Installation Dimensions


EM630 inverters can be categorized into 30 specifications for 3 overall dimensions and 11 installation dimensions .

Keypad can be installed onto iron panel separately with hole size of 114.5±0.1 (L)*71±0.1 (W) mm and metal panel thickness of 1.2-2.0 mm.







Overall Installation Dimensions of EM630



Specifications

W

W1/W2

H

H1

H2

D

D1

D2

d

Frame

EM630-4R0-3B

130

115/120

228

220

219

153

108

75

5

(b)

EM630-5R5-3B

140

130

270

261

258

172

128

94

5

(b)

EM630-7R5-3B

EM630-011-3B

180

150

368

353

343

210

165

136

7

(b)

EM630-015-3B

EM630-018-3B

EM630-022-3/3B

250

200

484

470

440

222

150

--

6.5

(c)

EM630-030-3/3B

EM630-037-3/3B

EM630-045-3/3B

315

220

560

546

513

250

180

--

7

(c)

EM630-055-3/3B

350

250

662

638

603

262

188

--

12

(c)

EM630-075-3/3B

EM630-090-3

386

300

753

724

700

292

231

300

13

(d)

EM630-110-3

416

300

855

825

793

307

246

315

13

(d)

EM630-132-3

EM630-160-3

497

397

1107

1076

1036

340

285

348

13

(d)

EM630-185-3

EM630-200-3

EM630-220-3

656

450

1348

1314

1261

388

232

395

13

(d)

EM630-250-3

EM630-280-3

EM630-315-3

801

680

1417

1383

1330

388

190

395

13

(d)

EM630-355-3

EM630-400-3




Packing details of EM630

EM630 Hoist drive- Optional Accessories


Items

Specifications

Introduction


Multi-Functional IO Expansion Card

EC-IO-A1

Used to extend the inverter control terminals

General Encoder Expansion Card (PG Card)

EC-PG-O1

OC input PG card

EC-PG-D1

Differential input PG card



EC-PG-U1

UVW differential input PG card



EC-PG-R1

Rotary transformer PG card

GPS controller

EC-GPS-M1

Supporting GPS remote control system

Surge protective device

SPD-550-3P

 Used to prevent lightning strikes
