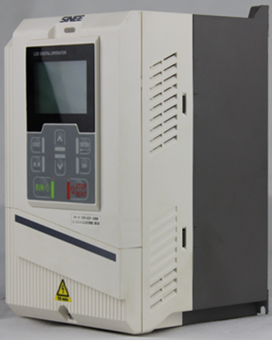

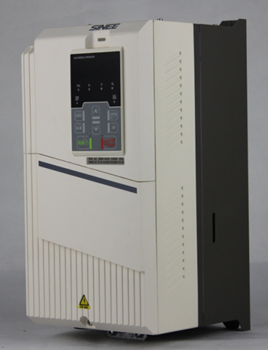

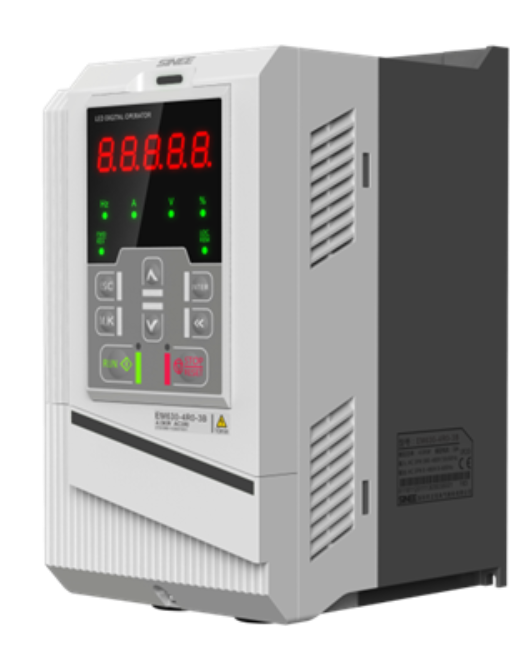

EM 610 Tension Control Inverter
VVF, SVC, FVC
3-phase 380 V/415V (±20%), 0.75~280kW

EM610 is a specialized inverter applicable to high precision tension control equipment in closed loop control mode, completely replacing the torque motor, winding and unwinding control system with coil diameter calculating and constant tension control units. Compared with traditional tension control system, it is more stable, simpler, and lower cost.
EM610 can be applied to coating machine, winding machine, embossing machine, rewinding cutting machine, laminating machine, annealing wire drawing machine, etc.

1.Salient features


①.  4 optional tension control modes:
    -Tension closed loop speed control mode
    -Tension open loop torque control mode
    -Tension closed loop torque control mode (The control accuracy is highest)
    -Constant linear speed control mode

②.  9 kinds of coiling diameter calculation by:
    -Line speed
    -Thickness accumulation
    -Encoder feedback pulse calculation
    -Simulation detection method
    -Open loop vector calculation, etc.

③. Constant tension control accuracy is ensured by friction and inertia compensation

④  Starting from 11kW, built-in DC reactor to improve power grid adaptability



⑤. Output phase current sampling, grounding short circuit protection is supportive

⑥. Special tension taper control function for winding ensures even and smooth coiling in the process of diameter increase

⑦. Automatically changing the volume of the pre - drive function

⑧. Applicable to AC induction motor or PMSM.

⑨. Standard ModBus RS485; 3 optional field bus communication cards: Profibus-DP, CANopen, DeviceNet

⑩. 3 optional PG cards for encoders: ABZ incremental, UVW incremental, and rotary transformer





2.Wiring diagram




3.Specifications


Items

Specifications

Mains supply

Rated Input

Voltage

3-phase 380V-20%~415V+20%, 50/60Hz±5%, voltage imbalance rate<3%

Output

Output Voltage

3-phase, from 0 to mains supply

Rated Output

Current

100% rated current non-stop output

Max. Overload

Current

150% rated current for 1 minute, 180% rated current for 10 seconds, 200% rated current for 2 seconds

 Basic

 Control

 Functions

Control Mode

V/F (VVF)

SVC (sensorless vector control)

FVC (feedback vector control)

Input Mode

Frequency (Speed) input, torque input

Running Mode

   Keyboard, control terminals (2-wire sequence, 3-wire sequence),

Communication

Width of frequency output

 0.00~600.00Hz

Input Frequency

Resolution

Digital input: 0.01Hz

Analog input: 0.1% of maximum frequency

Speed Regulation

Range

1:50 (V/F), 1:200 (SVC), 1:1000 (FVC)

Speed Control Accuracy

0.2% rated synchronous speed

Acceleration/

Deceleration

Time

0.01~600.00s / 0.1~6000.0s / 1~60000s

V/F Features

Rated output voltage: 20%~100% adjustable,

Base frequency: 20.00~600.00Hz adjustable

Torque Boost

Fixed torque boost curve, customized defined V/F curve

Starting Torque

150%/1Hz (V/F), 150%/0.25Hz (SVC), 150%/0Hz (FVC)

Torque Control

Accuracy

±8% rated torque (SVC), ±5% rated torque (FVC)

 AVR

   AVR is active while output voltage remains unchanged if input voltage

   is varying.

Automatic

Current Limit

Automatically limit output current, avoid tripping overcurrent frequently

DC Brake

Brake frequency: 0.01~Fmax, brake time: 0~30S

Brake current: 0%~100% rated current

Signal Input Source

Communication, , high speed pulse

 Input/ Output

 Functions

Reference Power Supply

10V/20mA

Terminal

Control Power

24V/200mA

 Digital Input

Terminals

7 standard (X1~X7) and 4 extension (X8~X11) digital input;

X7 can be applied as high speed pulse input terminal (F02.06=35/38/40)

X1~X6 and X8~X11 can only be applied as ordinary input terminal

 Analog Input

Terminals

3 standard (AI1~AI3) and 1 extension (AI4) analog input;

 2 voltage input (AI1/AI2)  0~10V or voltage input -10~10V

 2 voltage input (AI2/AI3) 0~10V or current inputs 0~20mA optional

 1 voltage input (AI4)-10V~10V

 Digital Output

Terminals

 3 OC multi-function outputs: 2 standard (Y1/Y2) and 1 extension (Y3)

 2 relay multi-function outputs: R1: EA/EB/EC and R2: RA/RB/RC

 Maximum output current of OC: 50mA

 Relay contact capacity: 250VAC/3A or 30VDC/1A, EA-EC and RA-RC N/O, EB-  EC and RB/RC N/C

 Analog Output

Terminals

 2 multi-function output terminals: M1/M2, output: 0~10V or 0~20mA

 Keypad

 Display

LED

Human interaction with display and control actuator

Parameter Copy

Upload and download parameter information of the inverter, copy parameters rapidly

 Protection

Protection Function

Short circuit, overcurrent, overvoltage,, overload, phase loss, undervoltage, overheating, over speed external faults, etc.

 Application

 Conditions

Installation Site

Indoor, with altitude less than 1,000 meters, free from dust, corrosive gas and direct sunlight

Ambient

Temperature

 -10℃~+50℃. Derated from ambient +40℃~+50℃,

 20%~90%RH (no condensation)

Vibration

<0.5g

Storage

Temperature

-20℃~+65℃

Installation

Method

Wall mounting, floor mounting, flush mounting

 Protection Grade

IP20/IP21(≥450kW)

 Cooling Method

Forced air cooling




4.Model Numbering Scheme




5.Model Number List






EM610 Outlook




Overall and Installation Dimensions


EM610 series inverter has 30 kinds of specifications, a total of 4 kinds of shapes and 12 kinds of installation dimensions






Overall Installation Dimensions of EM610




Packing details of EM610



Optional Accessories


Items

Specifications

Introduction


IO extension card

EC-IO-A1

Used to extend the inverter control terminals

Encoder expansion card

EC-PG-O1

OC input PG card

EC-PG-D1

Differential input PG card



EC-PG-U1

UVW differential input PG card

EC-PG-R1

Rotary transformer PG card

Communication card-Profibus-DP

EC-CM-P1

Used to connect the inverter

 to the Profibus-DP network

Communication card-CANOpen

EC-CM-C1

Used to connect the inverter

 to the CANOpen network

Communication card-DeviceNet

EC-CM-D1

Used to connect the inverter

 to the DeviceNet network
