EA100 servo drive

EA100 servo drive

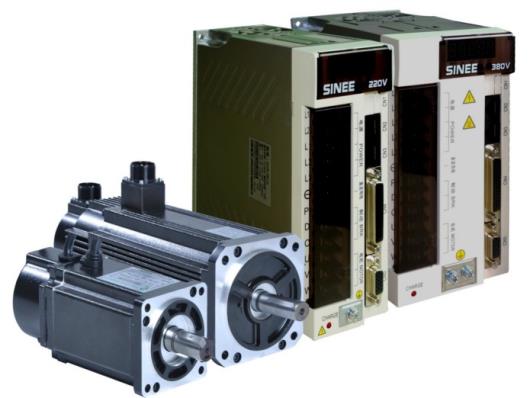

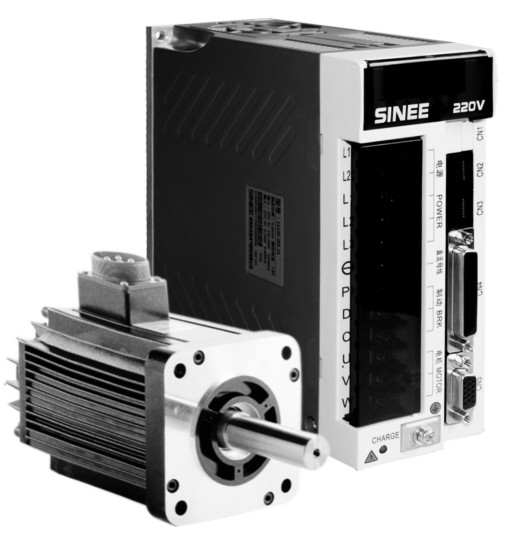

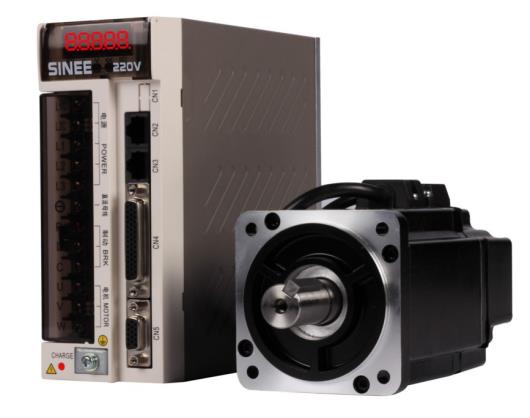

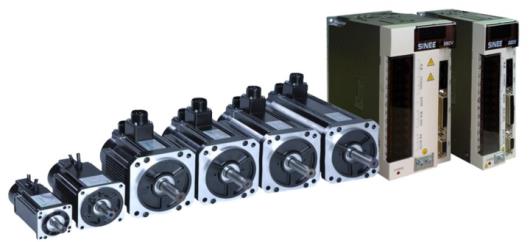

EA100 Servo Drive

1/3-phase AC220V±5% 50/60Hz 2.8A~7.6A
3-phase AC220V±5% 50/60Hz 2.8A~10A
3-phase AC380V±10% 50/60Hz 5.4A~26A

EA100 is a high performance general-purpose servo drive widely applied to numerically controlled machine tools, printing and packaging machinery, textile machinery, robot automatic production line and other automation fields.

EA100 Servo Drive

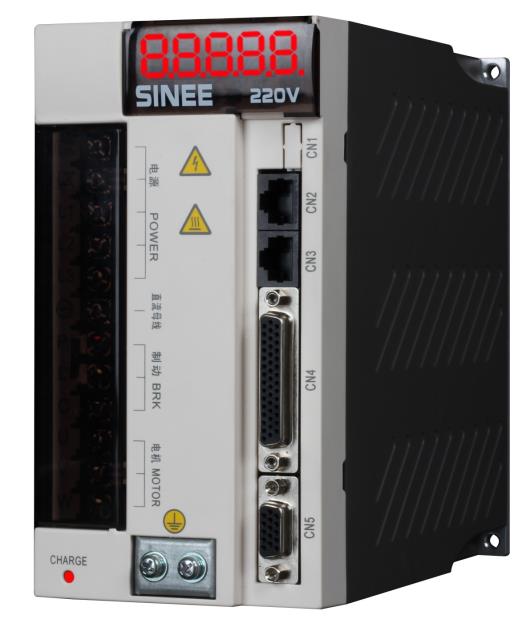

1.1 EA100 Servo Drive

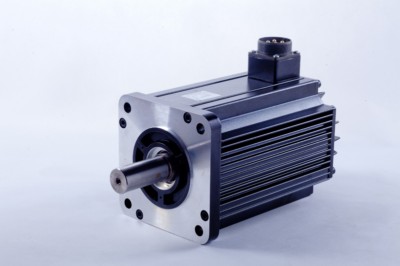

1.2 EA100 Servo Motor

SER Series servo motor features

Servo Drive:

Diagram of Overall and Installation Dimensions

Overall Dimensions


Frame

L(mm)

H(mm)

D(mm)

L1(mm)

H1(mm)

d(mm)

SIZE A

65

170

171

55

160

5

SIZE B

90

170

184

80

160

5

SIZE C

110

283

233

95

272

5



Packing details on EA100

There are only one packing for all size:



Individual Packing(mm)

165X240X265



Servo Motor:

Diagram of Overall and Installation Dimensions

1. 60 Flange  Frame


60 Flange  Frame

Model

SER06-0R4-30-2□AY

LD=134mm

SER06-0R4-30-2□AY1

LD=169.5mm



2. 80 Flange  Frame


80 Flange  Frameh

Model

LD



Model

LD

SER08-0R7-30-2□AY

142.5mm

SER08-0R7-30-2□AY1

173.0mm

SER08-0R7-20-2□AY

171.5mm

SER08-0R7-20-2□AY1

203.0mm

SER08-1R0-30-2□AY

171.5mm

SER08-1R0-30-2□AY1

203.0mm



3. 86 Flange  Frame


86 Flange  Frame

Model

SER09-0R7-30-2□BY

LD=148mm

SER09-0R7-30-2□BY1

LD=183mm



4. 130 Flange  Frame


130 Flange  Frame


Model

LD



Model

LD

SER13-0R7-20-2□BY

150mm

SER13-1R5-20-2□BY

185mm

SER13-1R0-10-2□BY

215mm

SER13-1R5-30-2□BY

165mm

SER13-1R0-20-2□BY

165mm

SER13-1R5-20-3□BY

185mm

SER13-1R0-30-2□BY

150mm

SER13-2R0-20-3□BY

215mm

SER13-1R5-10-2□BY

265mm

SER13-3R0-20-3□BY

265mm

Remark:LD increase in 55mm with the holding brake


5. 180 Flange  Frame


180 Flange  Frame

Model

LD



Model

LD

SER18-2R0-15-2BCY

173.5mm

SER18-2R0-15-2BCY1

222.0mm

SER18-3R0-15-3BCY

173.5mm

SER18-3R0-15-3BCY1

222.0mm

SER18-4R5-15-3BBY

186.5mm

SER18-4R5-15-3BBY1

235.0mm

SER18-5R6-15-3BBY

202.5mm

SER18-5R6-15-3BBY1

251.0mm

SER18-7R5-15-3BBY

252.5mm

SER18-7R5-15-3BBY1

323.5mm



Servo Motor

1. Model Numbering Scheme



2. Model Number List



Rated Input

Voltage (V)

Model

Rated

Power(W)

Rated

Speed(rpm)

Rated

Current (A)

Rated

Torque (Nm)

AC 220 V



SER-06

0R4-30-2A□Y□

400

3000

2.3

1.27

0R4-30-2□BY□

400

3000

2.25

1.27

SER-08

0R7-30-2□AY□

750

3000

4.3

2.4

0R7-30-2□BY□

750

3000

4.0

2.4

0R7-20-2□AY□

750

2000

3.0

3.5

1R0-30-2□AY□

1000

3000

4.0

3.5

SER-09

0R7-30-2□BY□

750

3000

3.43

2.4

SER-11

1R0-20-2□BY□

1000

2000

5.0

5.0

1R2-30-2□BY□

1200

3000

4.9

4.0

SER-13

0R7-20-2□BY□

750

2000

3.88

3.65

1R0-10-2□BY□

1000

1000

4.72

9.55

1R0-20-2□BY□

1000

2000

4.72

4.77

1R0-30-2□BY□

1000

3000

4.96

3.27

1R0-10-2□BY□

1500

1000

6.76

14.32

1R5-20-2□BY□

1500

2000

6.78

7.16

1R5-30-2□BY□

1500

3000

6.41

4.77

AC 380V

1R5-20-3□BY□

1500

2000

4.1

7.16

2R0-20-3□BY□

2000

2000

6.5

9.55

3R0-20-3□BY□

3000

2000

9.6

14.32

SER-18

3R0-15-3BCZ□

3000

1500

11.5

25.95

4R5-15-3BCZ□

4500

1500

17.0

35.37

5R6-15-3BCZ□

5600

1500

19.0

45.51

7R5-15-3BCZ□

7500

1500

28.7

79.89




3. Optional accessories:



① Servo motor power cable:

Power cable with amp plug


Power cable with aviation plug






② Servo motor encoder cable:

Encoder cable with amp plug




Encoder cable with aviation plug





③ IO signal control terminal
