EM600 High Performance Inverter

EM600 High Performance Inverter

(140)

EM600 High Performance Inverter

Closed loop Vector Control Inverter
3-phase 380V/415V(±20%),0.75~400kW

EM600 series high-performance vector control inverter supports multiple international leading control technology such as: improved vectorized VF control(VVF), speed sensor less vector control(SVC), and encoder feedback vector control(FVC). Coupled with varied kinds of optional card, it can be applied to more sophisticated industrial equipment with higher precision and stability.

1. Salient features

①.  Applicable motors: AC induction motor, PMSM

②.  Standard LED keypad, optional LCD keypad

③.  Built-in DC reactor for 11~400kW

④.  High torque control precision: ±8% rated torque(SVC), ±5% rated torque(FVC)
⑤.  Wide speed regulation: VVF/1:50, SVC/1:200, FVC/1:1000 and
     High speed control precision: ±0.2% rated speed

⑥.  Protections: Over-voltage stall, under-voltage, current limit, overload, overheat, over speed, over-voltage, etc.

⑦.  Loading at low frequency: 1Hz/150%(VVF), 0.25Hz/150%(SVC), and 0Hz/150%(FVC)

⑧.  Standard ModBus RS485; 3 optional field bus communication cards: Profibus-DP, CANopen, DeviceNet





⑨.  3 optional PG cards for encoders: ABZ incremental, UVW incremental, and rotary transformer
⑩.  In-built DC reactor for 11kw and above, enhancing power grid adaptability


⑪.  Standard built-in braking IGBT from 0.75-18.5kW, optional built-in braking IGBT from 22~75kW, external braking IGBT from 90~400kW
⑫.  Optional I/O extension card supports:4 DI, 1 DO, and -10V~+10V analog input
⑬.  Dual-CPU: More fast and more accuracy than single-CPU



2. Wiring diagram




3. Specifications


Items

Specifications

Mains

supply

Rated Input

 Voltage

3-phase 380V-20%~415V+20%, 50/60Hz±5%, voltage imbalance rate<3%

Output

Output Voltage

3-phase, from 0 to mains supply

Rated Output

Current

100% rated current non-stop output

Max. Overload

Current

150% rated current for 1 minute, 180% rated current for 10 seconds, 200% rated current for 2 seconds

Basic

Control

Functions

Control Mode

V/F, SVC (sensorless vector control technology), FVC (feedback vector control)

Input Mode

Frequency (Speed) input, torque input

Running Mode

 Keyboard, control terminals (2-wire sequence, 3-wire sequence), RS485  (communication)

Frequency Control

Range

0.00~600.00Hz

Input Frequency

Resolution

Digital input: 0.01Hz

Analog input: 0.1% of maximum frequency

Speed Regulation

Range

1:50 (V/F), 1:200 (SVC), 1:1000 (FVC)

Speed Control

Accuracy

0.2% rated synchronous speed

Acceleration/

Deceleration Time

0.01~600.00s/0.1~6000.0s/1~60000s

V/F Features

Rated output voltage: 20%~100% adjustable,

frequency base: 20.00~600.00Hz adjustable

Torque Boost

Fixed torque boost curve, customized defined V/F curve scaling

Start Torque

150%/1Hz(V/F), 150%/0.25Hz(SVC), 150%/0Hz(FVC)

 Torque Control  Accuracy

±8% rated torque(SVC),±5% rated torque(FVC)

AVR

AVR is active while output voltage remains unchanged if input voltage is varying.

 Automatic Current  Limit

Automatically limit output current, avoid tripping overcurrent frequently

DC Brake

Brake frequency: 0.01~Fmax, brake time: 0~30S

Brake current: 0%~100% rated current

Signal Input  Source

Communication, analog voltage, analog current, preset speed, high speed pulse

Input/

Output

Functions

Reference Supply

10V/20mA

 Terminal Control  Power

24V/200mA

Digital Input Terminals

11 digital input terminals: 7 standard (X1~X7) and 4 extensions (X8~X11);

X7 can be applied as high speed pulse input terminal (F02.06=35/38/40)

X1~X6 and X8~X11 can only be applied as ordinary input terminal

 Analog Input  Terminals

4 analog inputs: 3 standard (AI1~AI3) and 1 extension (AI4)

1 voltage input (AI1) 0~10V

2 voltage input (AI2/AI3) 0~10V or current inputs 0~20mA optional

1 voltage input (AI4)-10V~10V

Digital Output Terminals

3 OC multi-function outputs: 2 standard (Y1/Y2) and 1 extension (Y3)

2 relay multi-function outputs: R1: EA/EB/EC and R2: RA/RB/RC

Maximum output current of OC: 50mA

Relay contact capacity: 250VAC/3A or 30VDC/1A, EA-EC and RA-RC N/O, EB-EC

and RB/RC N/C

 Analog Output  Terminals

2 multi-function output terminals: M1/M2, output: 0~10V or 0~20mA

Keyboard

Display

LED

Human interactions with displays and control actuators

Parameter Copy

 Upload and download parameter information of the inverter, copy parameters  rapidly

Protection

Protection

 Short circuit, overcurrent, overvoltage,, overload, phase loss, undervoltage,  overheating, over speed external faults, etc.

Application

Conditions

Installation

Site

 Indoor, with altitude less than 1,000 meters, free from dust and corrosive gas, and  direct sunlight

 Ambient  Temperature

 -10℃~+50℃. Derated from ambient +40℃~+50℃,

 20%~90%RH (no condensation)

Vibration

<0.5g

Storage

Temperature

-20℃~+65℃

Installation Method

Wall mounting, floor mounting, flush mounting

Protection Grade

IP20

Cooling Method

Forced air cooling

Safety Standard

IEC61800-5-1:2007

EMC Standard

IEC61800-3:2004





4. Model Numbering Scheme



5. Model Number List




Remarks:
The difference between inverter and motor shall not be more than two power ratings. Please try to select a motor that matches with the inverter in rated current.

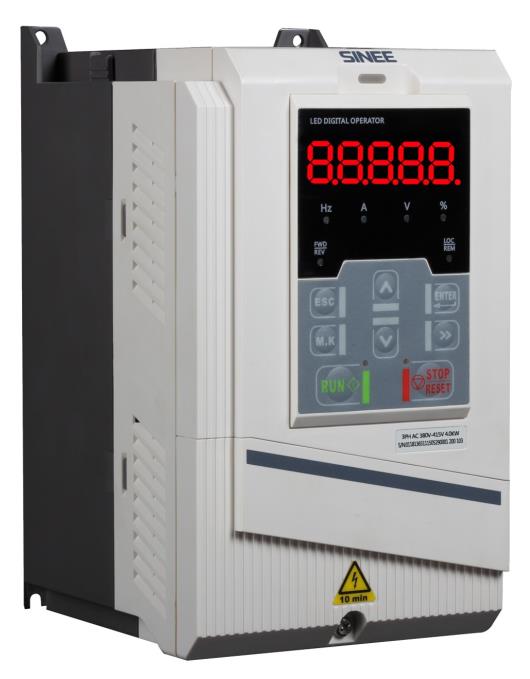

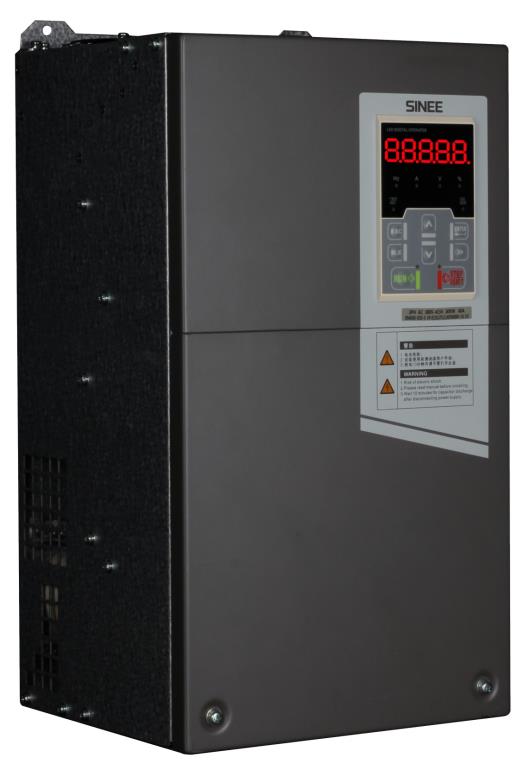

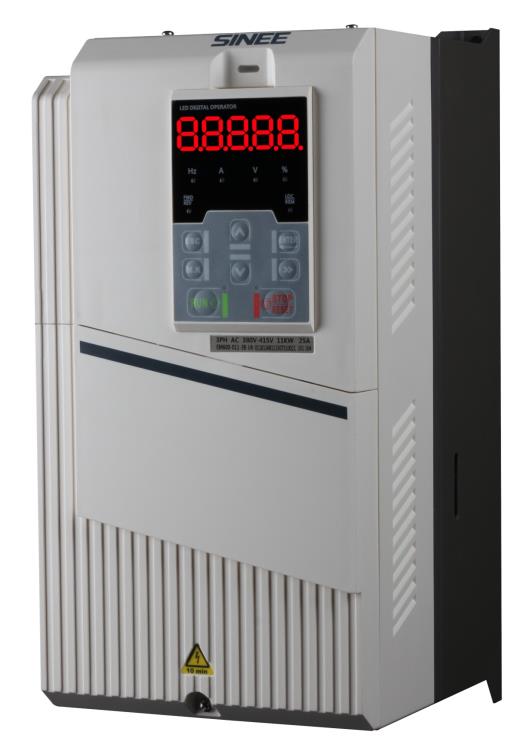

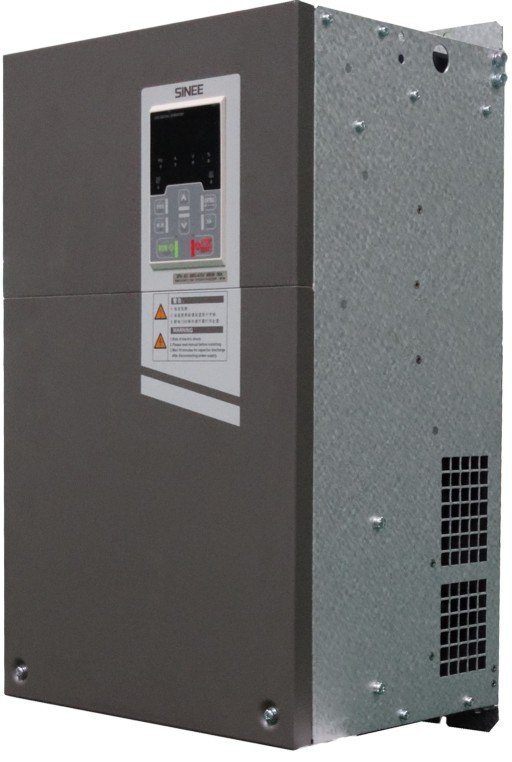

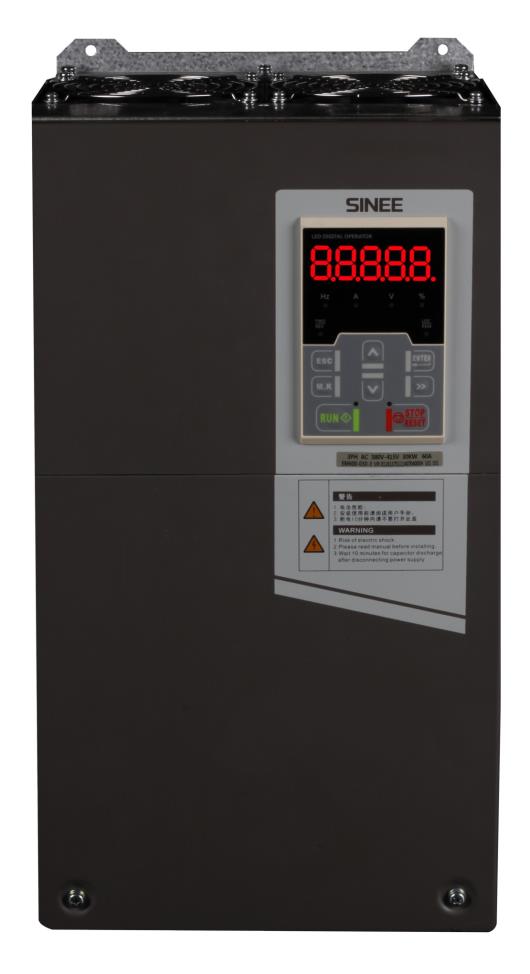

EM600 Outlook



Overall and Installation Dimensions


EM600 can be categorized into 27 specifications for 3 overall dimensions and 11 installation dimensions.

Keypad can be installed onto iron panel separately with hole size of 114.5±0.1 (L)*71±0.1 (W) mm and metal panel thickness of 1.2 - 2.0 mm.



Overall Installation Dimensions of EM600

Model No.

W

W1/W2

H

H1

H2

D

D1

D2

d

Frame

EM600-0R7-3B

130

115/120

228

220

219

153

108

75

5

(b)

EM600-1R5-3B

EM600-2R2-3B

EM600-4R0-3B

EM600-5R5-3B

140

130

270

261

258

172

128

94

5

(b)

EM600-7R5-3B

EM600-011-3B

180

150

368

353

343

210

165

136

7

(b)

EM600-015-3B

EM600-018-3B

EM600-022-3/3B

250

200

484

470

440

222

150

--

6.5

(c)

EM600-030-3/3B

EM600-037-3/3B

EM600-045-3/3B

315

220

560

546

513

250

180

--

7

(c)

EM600-055-3/3B

350

250

662

638

603

262

188

--

12

(c)

EM600-075-3/3B

EM600-090-3

386

300

753

724

700

292

231

300

13

(d)

EM600-110-3

416

300

855

825

793

307

246

315

13

(d)

EM600-132-3

EM600-160-3

497

397

1107

1076

1036

340

285

348

13

(d)

EM600-185-3

EM600-200-3

EM600-220-3

656

450

1348

1314

1261

388

232

395

13

(d)

EM600-250-3

EM600-280-3

EM600-315-3

801

680

1417

1383

1330

388

190

395

13

(d)

EM600-355-3

EM600-400-3


Packing details of EM600




Iterms  specification  Introduction  Picture



IO extension card

EC-IO-A1 4 digital Multi-function Inputs
1 analog Voltage Signal Input(Support -10V - +10V voltage input or
PT100/PT1000 temperature sensor)
Numeric Signal Output
IO extension card EC-IO-A3

1 temperature input

:Support PT100, KTY84-130/150 and

PTC130/150 temperature sensor

1 relay output (NO):Y3: EA3-EC3, maximum output current

of OC is 50mA; relay contactor capacity:

250VAC/3A or 30VDC/1A

Power Supply:+15V-GND, max. output current is 100mA






Encoder expansion card

EC-PG-D1 Differential input PG card.
EC-PG-U1 UVW differential input PG card
EC-PG-R1 Rotary transformer PG card
Communication card-Profibus-DP EC-CM-P1

Communication card EC-CM-P1 is defined as PROFIBUS-DP slave

communication card and used to connect EM500 inverter to PROFIBUS-DP network.

Communication card-CANOpen EC-CM-C1 Communication card EC-CM-P1 is defined as CANopen slave communication card and used to connect EM500 inverter to CANopen network.
Communication card-DeviceNet EC-CM-D1 Communication card EC-CM-D1 is defined as DeviceNet slave communication card and used to connect EM500 inverter to DeviceNet network.
 LCD keyboard   Display the working status information
of the inverter from the LCD screen





BR100 Dynamic Braking Unit



Model and specifications



Model No. Minimum Resistance (Ω)

Average Brake Current

Iav(A)

eak Brake Current

Imax(A)

For inverters(kW)
BR100-045 10 45 75 18.5~45
BR100-160 6 75 150 55~160
BR100-315 3 120 300 185~315


Remarks:

1. BR100-045 is applicable to 3-phase 220Vac / 380Vac inverter.

For 3-phase 220Vac inverter, the braking voltage is 395Vdc or 420Vdc.

For 3-phase 380Vac inverter, the braking voltage is 675Vdc or 720Vdc.

2. BR100-160/BR100-315 is applicable to 3-phase 380Vac inverter only
