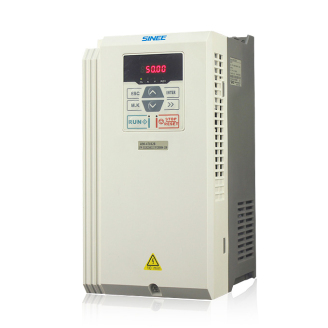

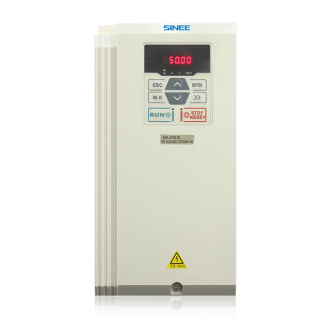

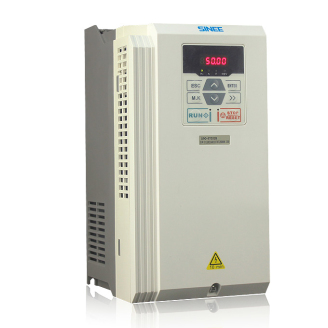

A90 Compact inverter

A90 Compact inverter

(245)

Overview

V/F & SVC Control
1-phase 220V(±20%), 0.4~2.2kW
3-phase 380V/415V(±20%),0.4~160kW
• A90 compact inverter is high performance and high competitive model.
• New technology platform: the 4th generation IGBT module.
• Applicable to IM and PM motor.

Main features:
1. Normal operation under ambient 50℃, no need for derating;

2. Smaller volume size less than other similar products by averagely 20%-50% ;

3. Wide speed regulation: VF/1:50,SVC/1:200,and high precision control: ±0.2% of rated speed;

4. Superior loading at low frequency: VF/1HZ/150%,SVC/0.25HZ/150%;

5. Super cost-effective;

6. Superior protection: overcurrent, overvoltage, overload, over-temperature.

7. As a buffer against power interruption, the inverter can stop motor slowly to protect it.

Specifications

W

W1/W2

H

H1

H2

D

D1

A90-2T2R8B

75

65

142

133

142

141

67

A90-2T4R8B

A90-2T008B

92

76/81

171

162

162

132

82

A90-2T010B

A90-4T1R5B

75

65

162

153

142

103

29

A90-4T2R5B

75

65

142

133

142

141

67

A90-4T4R2B

A90-4T5R6B

92

76/81

171

162

162

132

82

A90-4T9R4B

A90-4T013B

109

94

218

208

207

153

102

A90-4T017B

A90-4T025B

130

107/119

261

250

250

163

128

A90-4T032B

A90-4T038B

190

167

293

282

280

180

143

A90-4T045B

A90-4T060

245

210

425

410

390

188

137

A90-4T075

A90-4T090

300

266

491

473

450

206

168

A90-4T110

A90-4T150

335

286

491

471

450

206

170

A90-4T176

335

286

623

601

570

293

248

A90-4T210

A90-4T253

400

330

743

723

690

300

246

A90-4T304




External optional keypad, two options:
1. Big one with potentiometer;
2. Small one without potentiometer.
